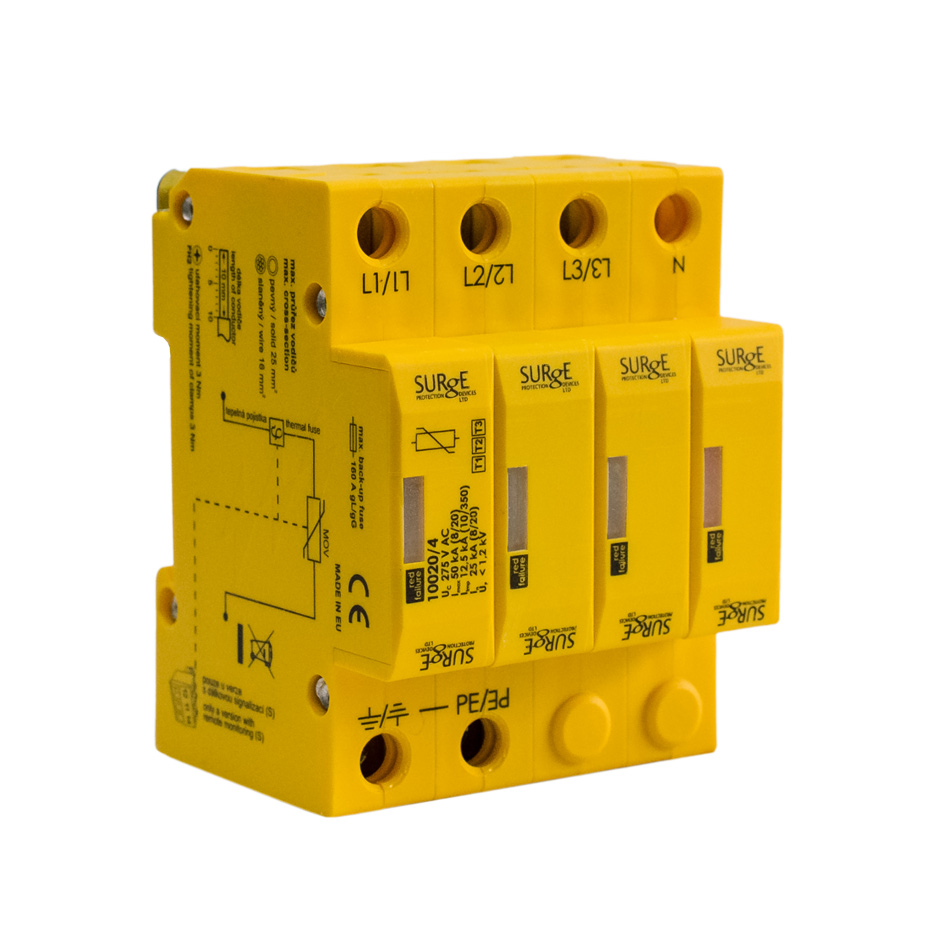

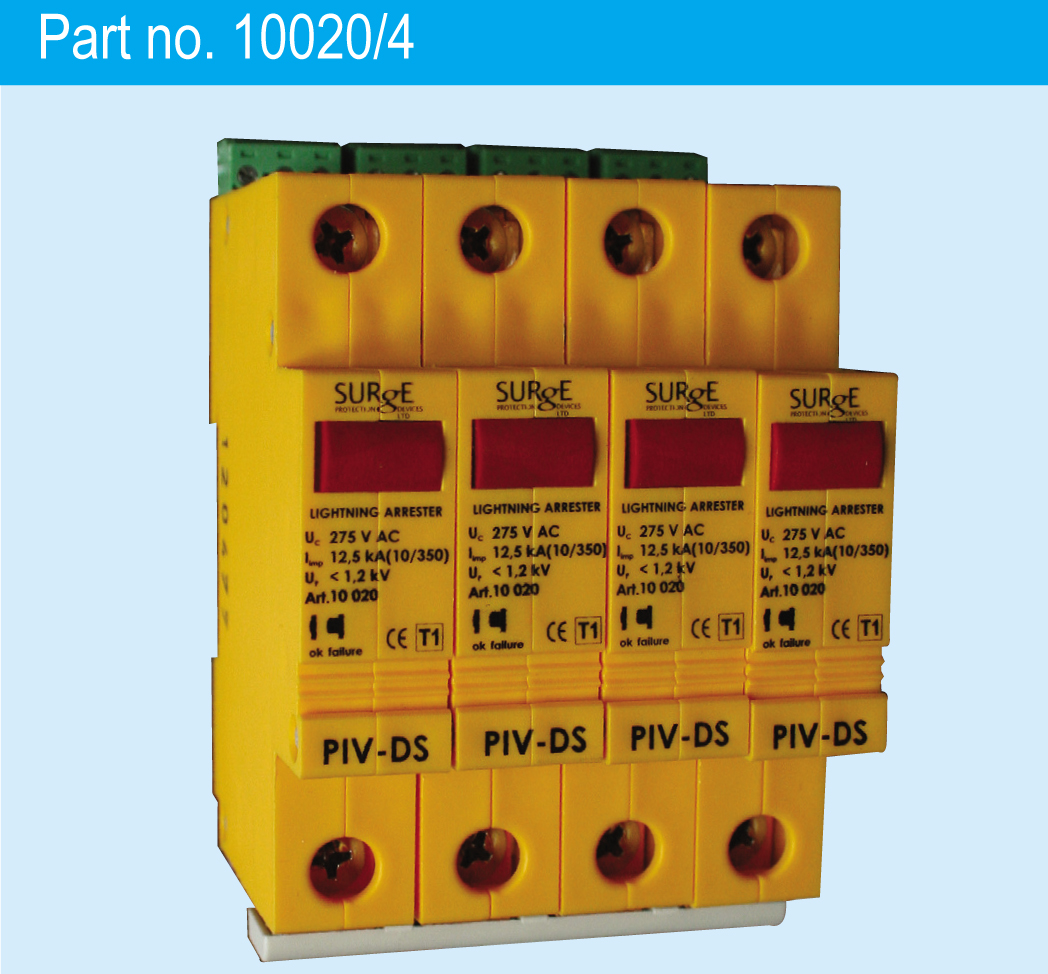

10020/4 – Type 1+2+3, 50KA (Level 3/4), 3 phase device with button indication
Fully compliant to BSEN62305, BS61643-11 & BS7671.
Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.
Low let through voltage <1.2kV.
Visual indication of status.
Will extinguish follow currents after activation.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Din rail mountable.
Fast response time <25ns.
Minimum backup fuse / MCB 63A.
Recommended cable size 25mm².
Can be supplied in polycarbonate IP65 or metal housing at an additional cost.
Manufactured in Europe.
Competitively priced against other brands.
