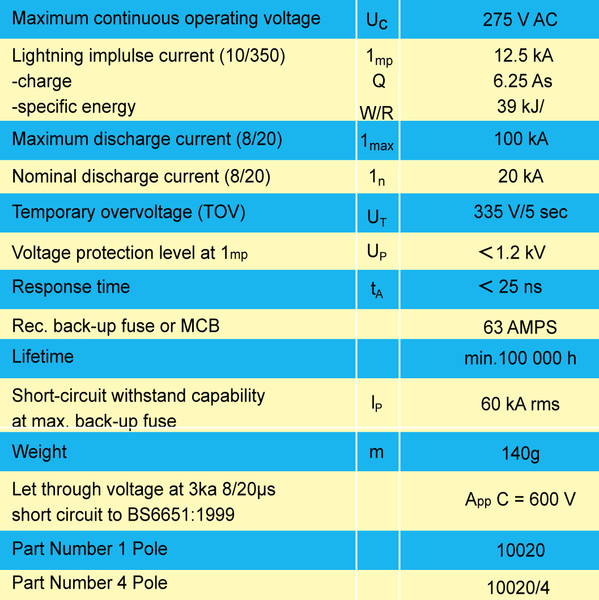

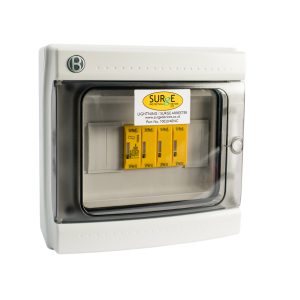

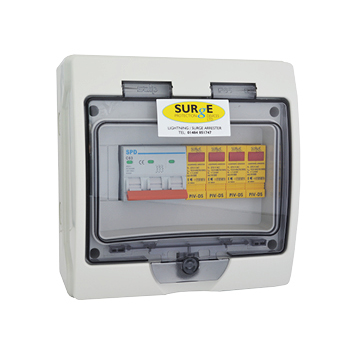

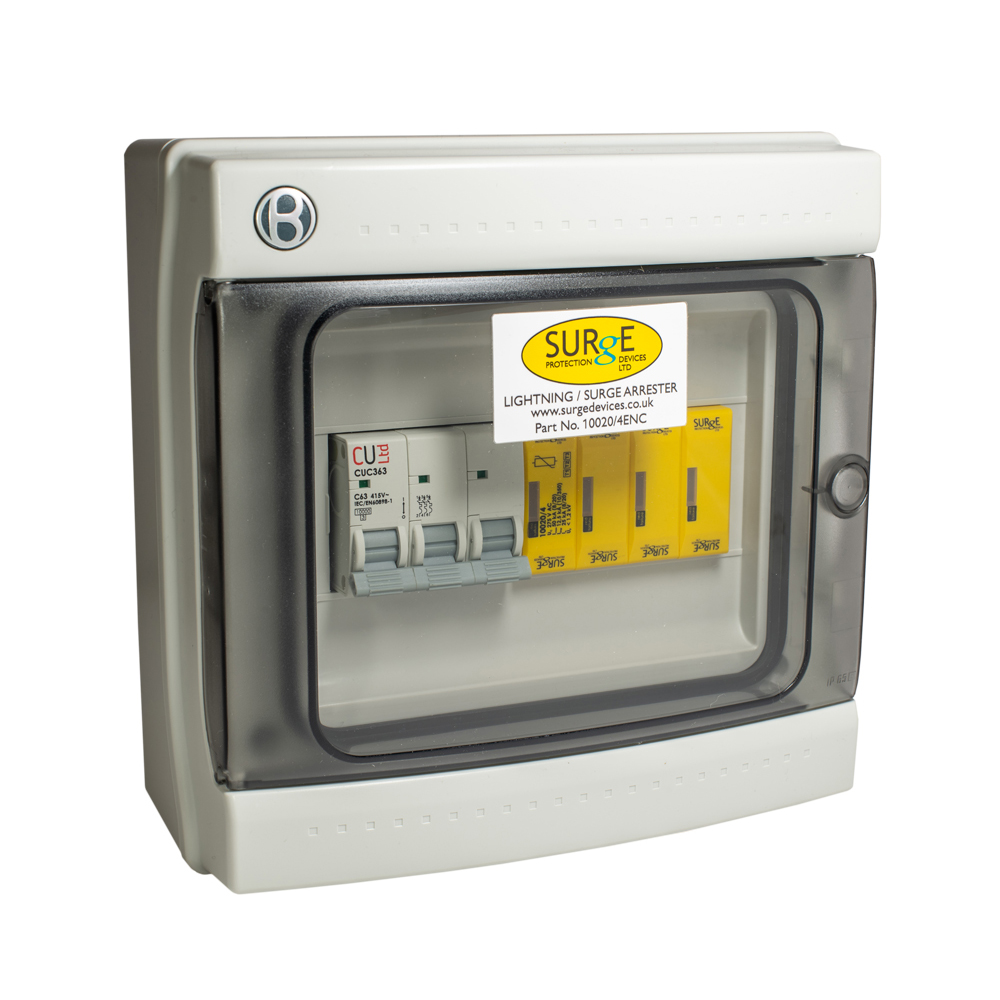

10020/4ENCM – Type 1 + 2 + 3, 50KA (Level 3/4), 3 phase device with button indication, complete in IP65 polycarbonate enclosure, including a 3 pole 63AMP MCB
Lightning protection level 3-4, 50KA, 10/350μs.
Compliant to BS7671.
Din rail mountable.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Very low let-through voltage >1.2kV.
Follow currents completely eliminated.
Manufactured in Europe by leading company.
Competitively priced against other brands.
Button indication status.
Fast response time less than <25ns.
Minimum backup Fuse / MCB 63A.
Cable size 25mm².
Complete in a polycarbonate enclosure.
Includes 3 pole, 63AMP MCB.
