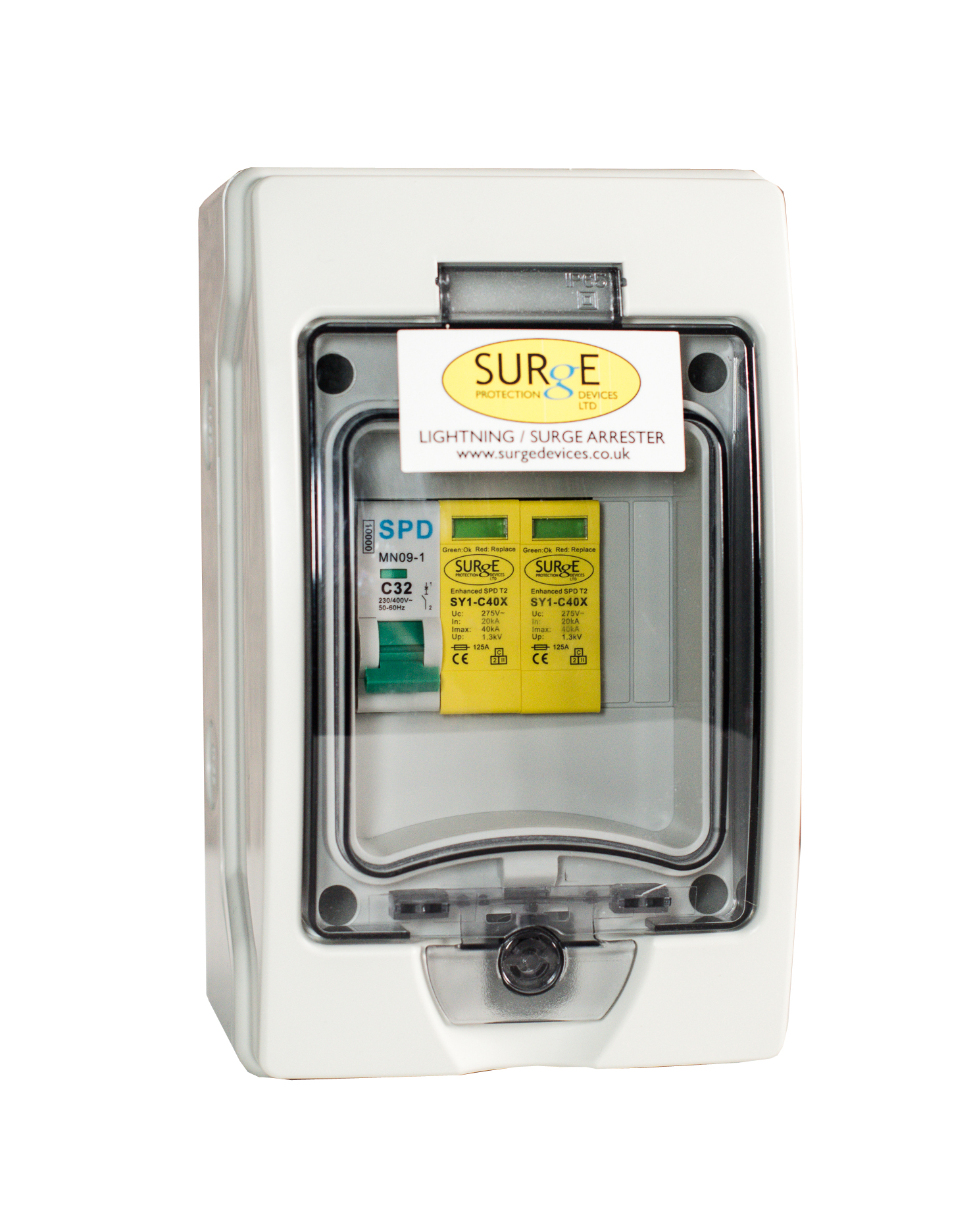

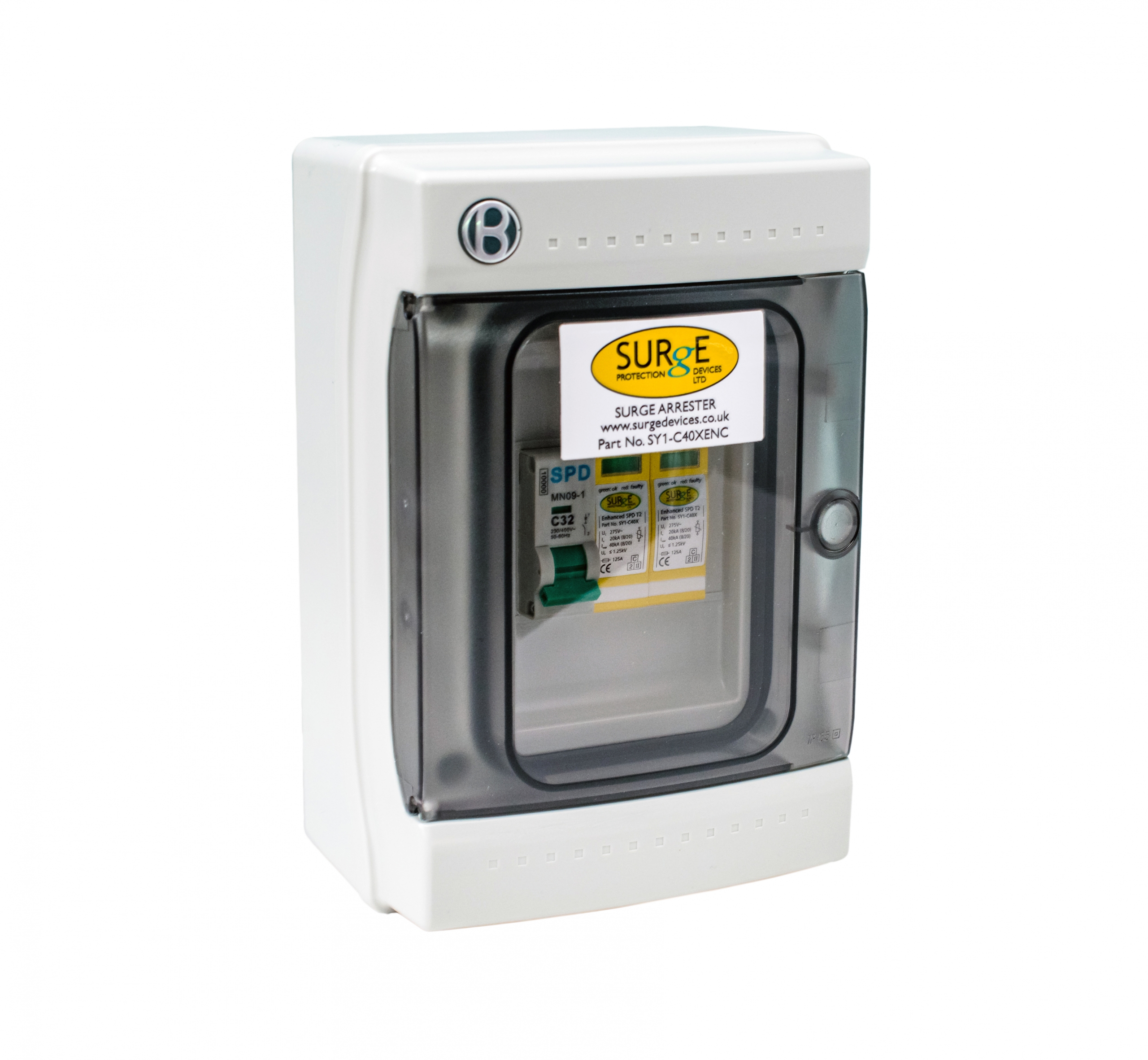

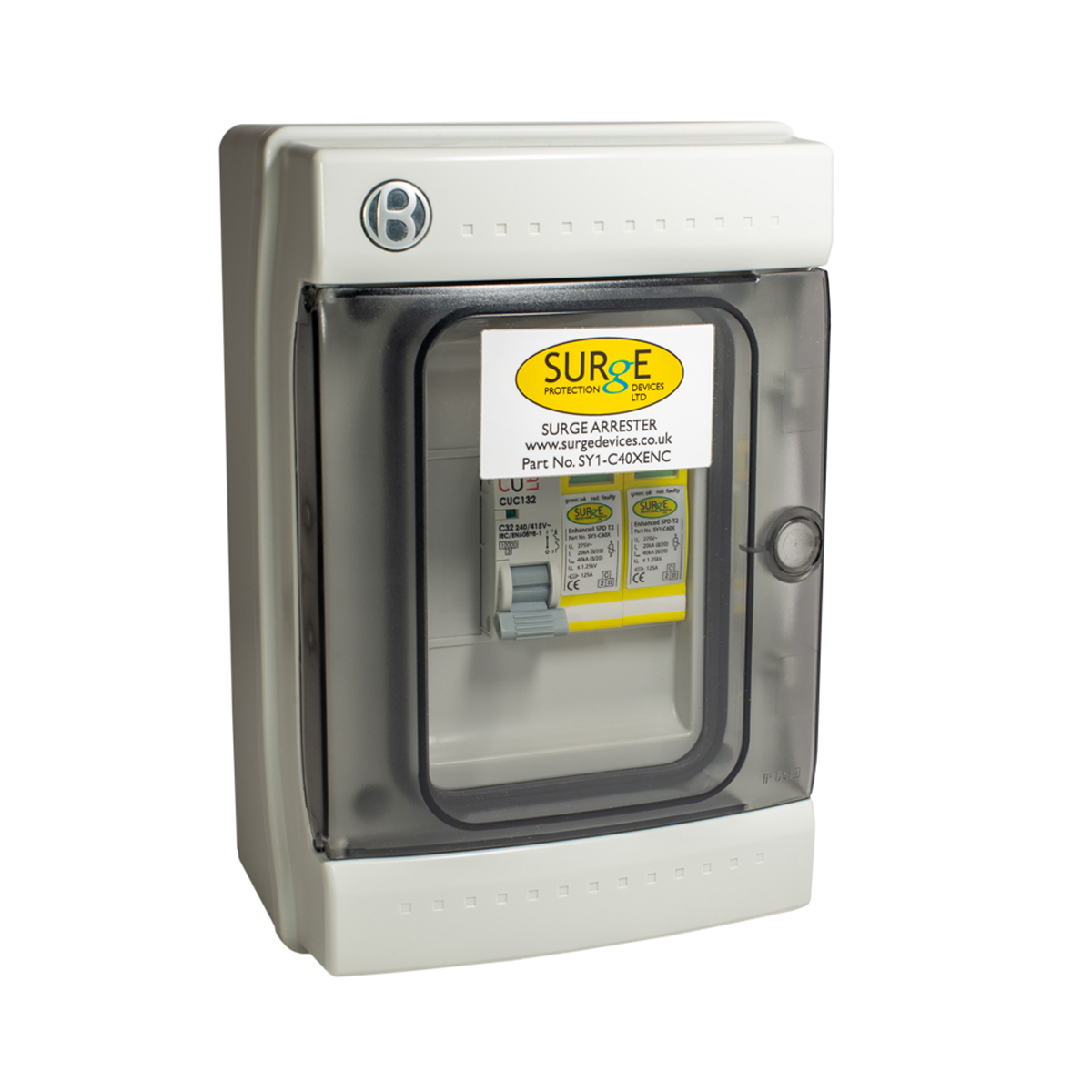

SY1-C40XENCM – Type 2+3, single phase, with window indication, complete in IP65 polycarbonate enclosure, including a single pole MCB
Conforms to BSEN62305, EN61643-11 and BS7671 1st amendment wiring regs.
Use where there is no external lightning protection and no overhead lines.
Use on sub-distribution boards to protect sensitive electrical equipment.
Connect in parallel meaning no current limitations.
Visual and remote indication as standard.
Each pole individually replaceable.
Use 32A to 63A backup MCB.
Cable size 6mm2 – 16mm2.
Single phase and neutral protection.
Protect sensitive electronic equipment with high quality surge arresters.
Includes an IP65 polycarbonate enclosure.
Complete with a 32 amp MCB.
