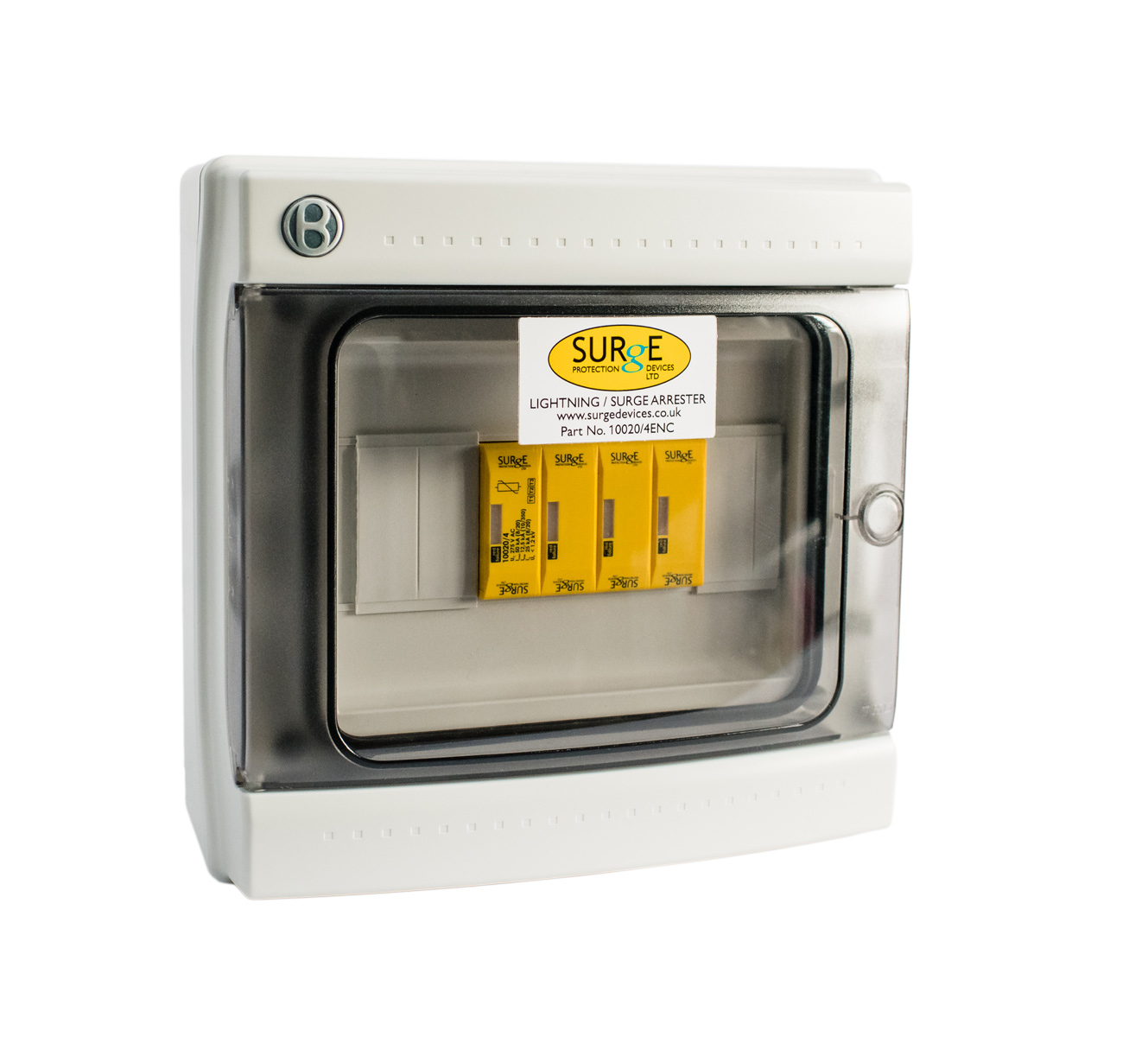

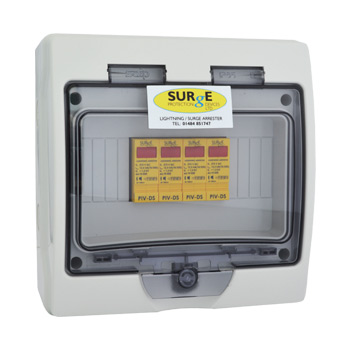

10020/4ENC – Type 1+2+3, 50kA (Level 3/4), 3 phase with button indication complete in IP65 polycarbonate enclosure
Combined lightning arrester Type 1+2+3, can handle lightning currents and protect sensitive electronic equipment.
Lightning protection level 3-4, 50KA, 10/350μs.
Compliant to BS7671.
Din rail mountable.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Very low let-through voltage >1.2kV.
Follow currents completely eliminated.
Manufactured in Europe by leading company.
Competitively priced against other brands.
Button indication status.
Fast response time less than <25ns.
Minimum backup Fuse / MCB 63A.
Cable size 25mm².
Complete in a polycarbonate enclosure.
