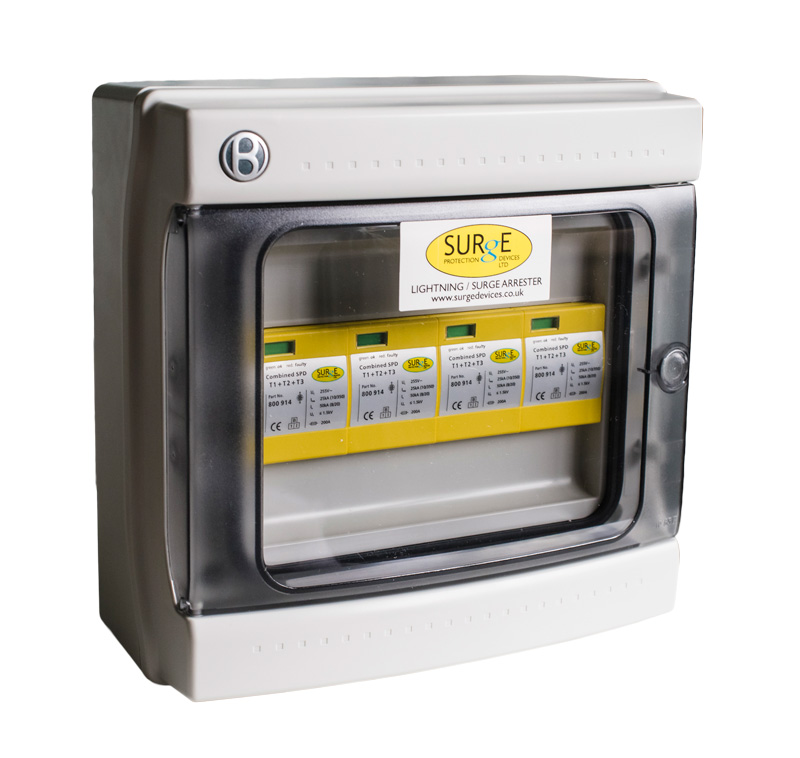

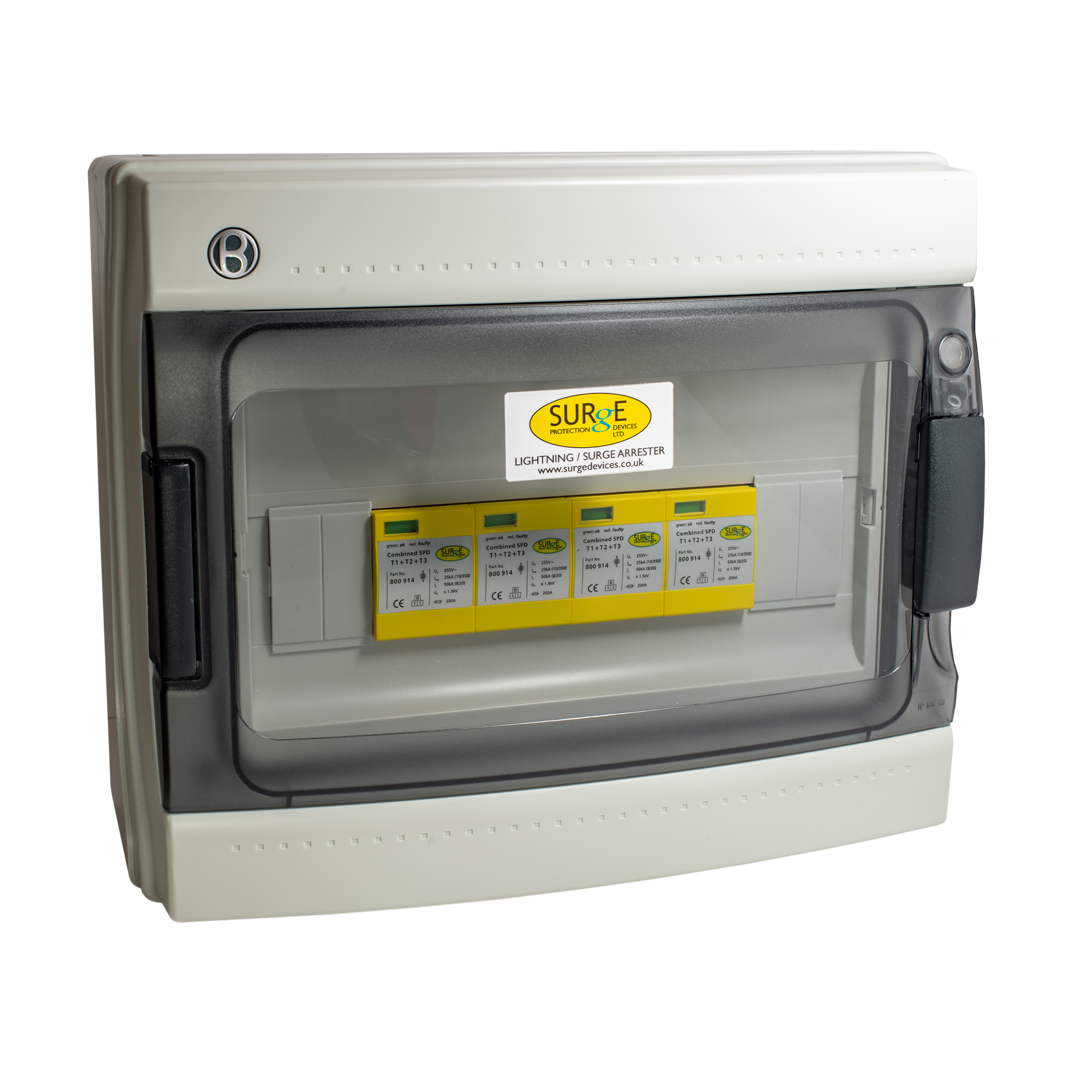

800914ENC – Type 1+2+3, 100ka (level 1), 3 phase device, with window indication and pluggable modules, complete in IP65 polycarbonate enclosure
Lightning protection Level 1, which is the highest protection level 100kA 10/350µs.
Enhanced protection to BSEN62305, BSEN61643-11 & BS7671.
Combined arrester Type 1+2+3 can handle lightning currents and protect sensitive electronic equipment.
Visual indication of status.
Pluggable replacement modules.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Din rail mountable.
Minimum backup fuse / MCB 63A.
Recommended cable size 25mm².
Supplied in a polycarbonate enclosure.
Manufactured in Europe.
Competitively priced against other brands.
