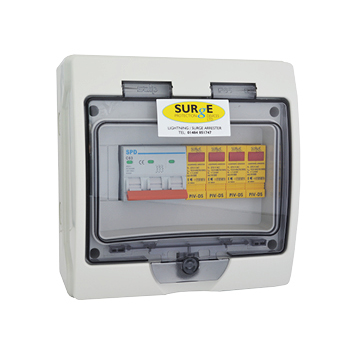

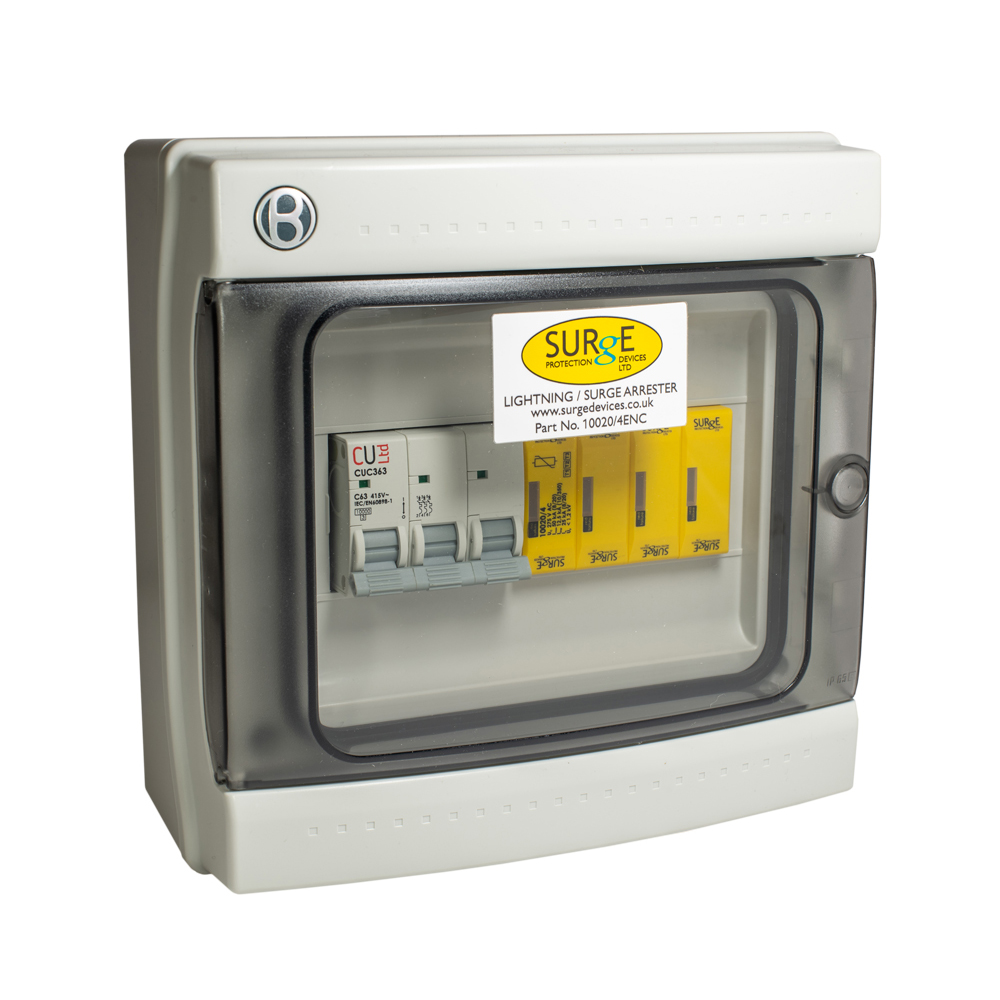

10020/4ENCM – Type 1+2+3, 50KA (Level 3/4), 3 phase device with indication, complete in IP65 polycarbonate enclosure, including a 3 pole 63AMP MCB

£580.00 Original price was: £580.00.£464.00Current price is: £464.00. + VAT

Lightning protection level 3, 50KA 10/350μs.

Fully compliant to BSEN62305, BS61643-11 & BS7671.

Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.

Low let through voltage <1.2kV.

Visual indication of status.

Will extinguish follow currents after activation.

Remote changeover contacts can be linked to BMS, buzzer, light etc.

Din rail mountable.

Fast response time <25ns.

Minimum backup fuse / MCB 63A.

Recommended cable size 25mm².

Complete in a polycarbonate enclosure with 63A breaker.

Manufactured in Europe.

Competitively priced against other brands.

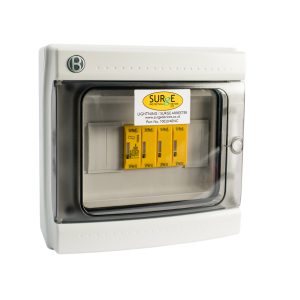

Please note: The enclosure pictured may differ from the actual enclosure received due to supply issues. For current enclosure dimensions please ring the office on 01484 851 747.

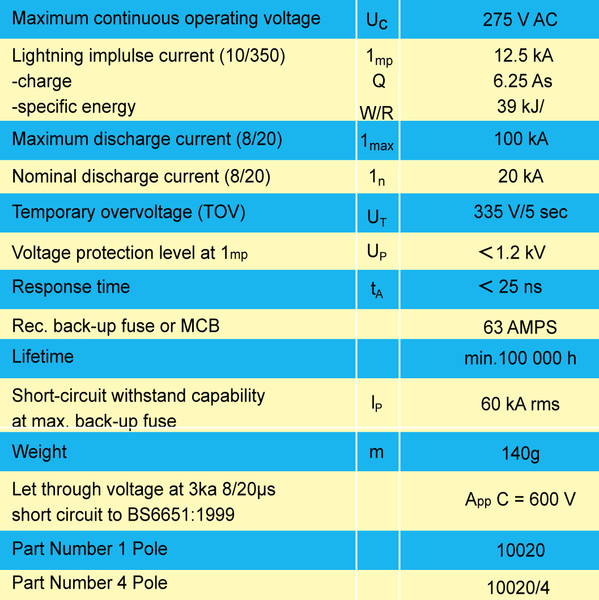

Download Data Sheet
