Sale!
Download Data Sheet

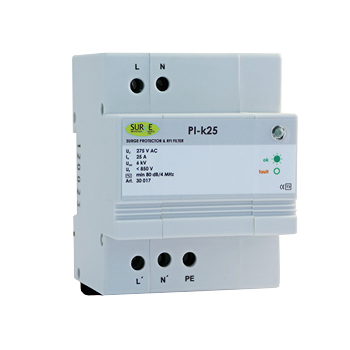

30017 – Type 3, 25 amps, Single Phase Varistor and EMC/EMI Filter Surge Arrester
Original price was: £260.00.£208.00Current price is: £208.00. + VAT
19 in stock
Type 3 single phase surge arrester with a high frequency filter according to BSEN61643-11. They are produced for nominal current within the range 0f 8, 16, 25 and 32 amps for mounting on din rail 35mm. For protection of single phase electronic appliances in low voltage supply systems against impulse surge and high frequency disturbance.
Meets all the latest standards and requirements.
Protects sensitive measuring and laboratory equipment.
Visual indication of status (LED’S).
Earth leakage free.
Surge arrester with filter combined.
Wired in series.
Download Data Sheet
