Lightning protection Level 3, 25kA 10/350μs.
Fully compliant to BSEN62305, BS61643-11 & BS7671.

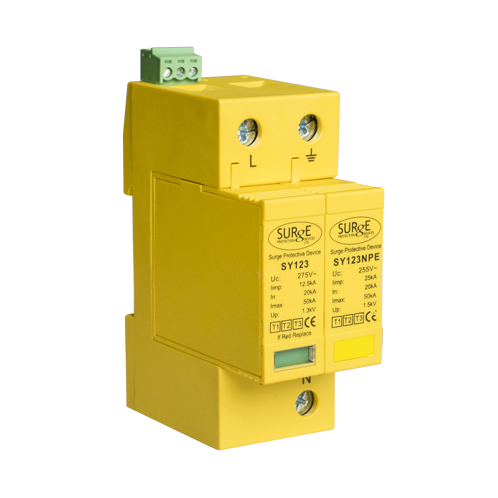

Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.
Suitable for all installation types (TT, TNC-S & TN-S).
Low let through voltage <1.3kV.
Visual indication of status.
Pluggable replacement modules.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Din rail mountable.
Minimum backup fuse / MCB 63A.
Recommended cable size 25mm².

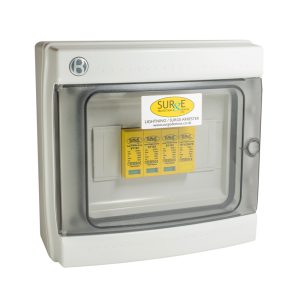

Can be supplied in polycarbonate IP65 or metal housing at an additional cost.
Manufactured in Europe.
Competitively priced against other brands.
